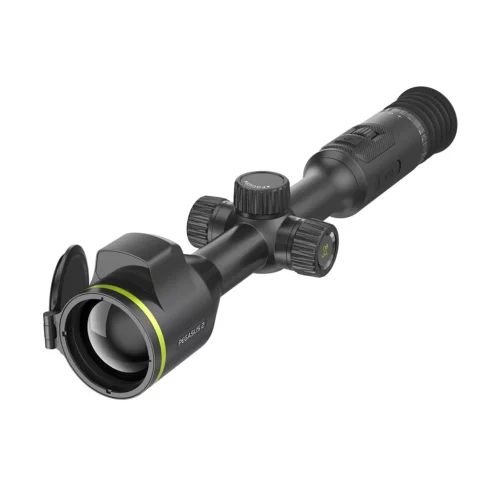

Pixfra Pegasus 2 P650 LRF Thermal Scope

High-Sensitivity Thermal Imaging

The Pegasus 2 P650 LRF uses a 640 × 512, 12μm VOx thermal sensor with ≤15mK NETD, delivering high sensitivity for target detection in low-contrast conditions such as mist, damp woodland and temperature-neutral backgrounds.

A 50mm F1.0 objective lens provides an 8.8° × 7.0° field of view (15.4m × 12.3m @100m) with a detection range of up to 2,600m. Base magnification is 3.6×, supported by 1×–8× digital zoom.

Optical Design & Display System

Manual rear focus allows adjustment down to 3m. The optical system is paired with a 0.5” OLED display (1600 × 1200), delivering a detailed and stable viewing image.

50mm eye relief supports higher-recoil use, with –5D to +5D diopter adjustment for user correction. Six colour palettes are available alongside Auto, Manual and Semi-Auto FFC calibration and DPC.

Integrated Laser Rangefinder & Ballistics

The integrated laser rangefinder measures up to 1,000m with ±1m accuracy (Class 1), with single and continuous ranging modes.

Ballistic calculation is built in, supporting multiple zero profiles, reticle options and full adjustment via the onboard interface. Recoil resistance is rated to 1,000g / 0.4ms.

Recording, Connectivity & Control

Supports video recording with audio, still capture and playback via 64GB internal storage. Wi-Fi hotspot enables connection to mobile devices.

Additional features include PIP, hot spot tracking, standby mode, PIPS 3.0 processing and recoil-activated recording. Controls use a combined wheel/button interface with Q-switch power control.

Power System & Durability

Powered by dual 18650 batteries (internal + external), delivering up to ≥9 hours runtime (25°C, Wi-Fi off). Charging and data transfer via USB Type-C.

Magnesium alloy construction with IP67 rating, operating from –30°C to +55°C. Dimensions are 409 × 90 × 78.5mm, with a weight of ≤0.84kg.

Product Specifications
